How to config L2TP Over IPsec?

If you want to know how to config L2TP over IPSec, please kindly check this guide step by step.

1. Open web page ServiceàVPN àIPSec, then click edit.

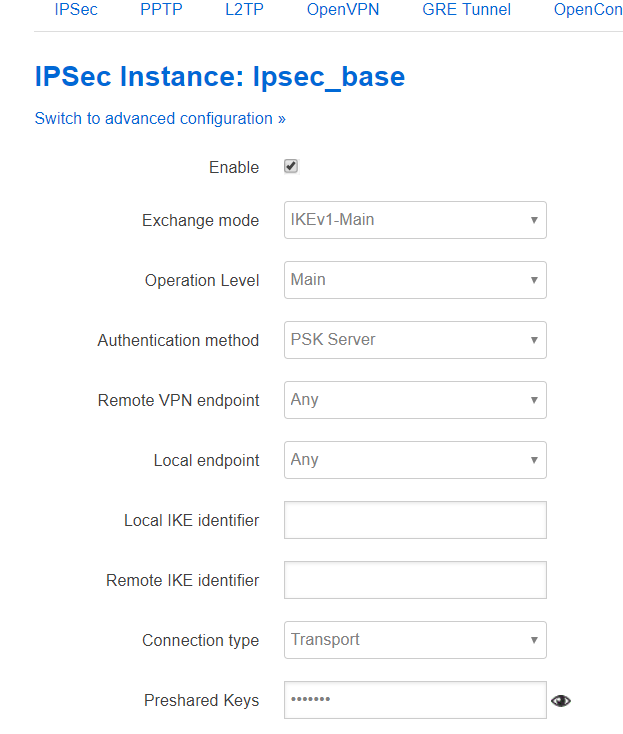

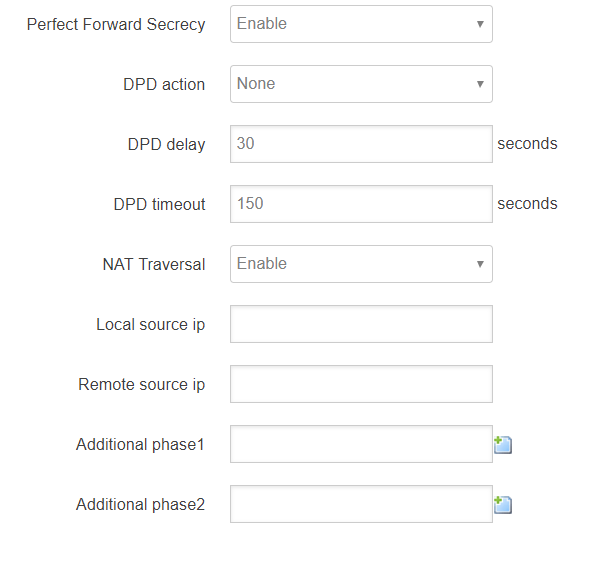

2. Config IPSec as below.

3. Save & apply.

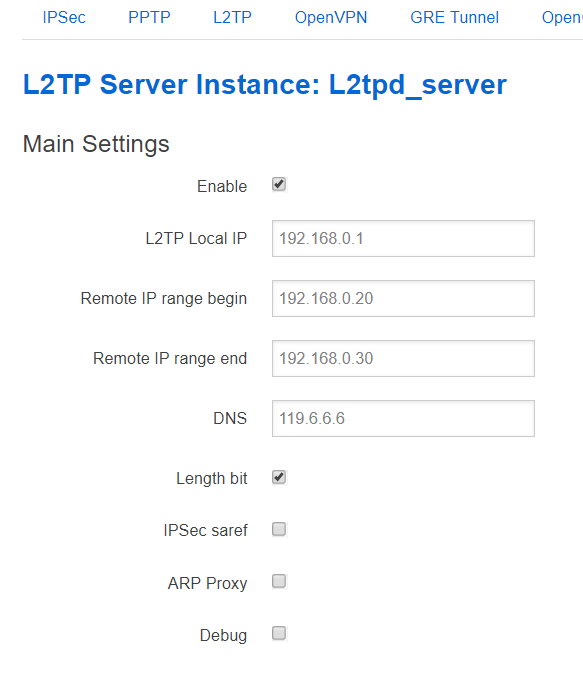

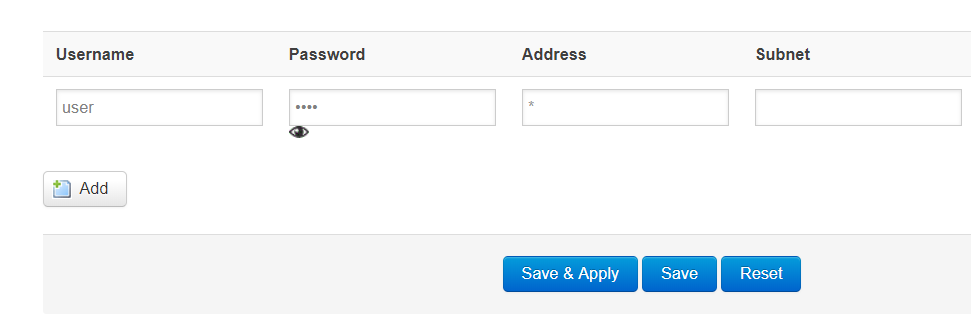

4. Goto page ServiceàVPNàL2TP then click edit

5. We can connect Android, iPhone,windows like this:

https://github.com/hwdsl2/setup-ipsec-vpn/blob/master/docs/clients.md#windows

6. Goto Status àVPN àL2TP tunnel check VPN status.
